Quansheng UV-K5(8) Walkie Talkie — Multi-Band Ham Radio, 200CH, Cross-Band, DRRM Field Transceiver

In a disaster, communication is survival.

When cell towers go down, internet fails,
and landlines are cut — the only reliable
communication link is radio.

The Quansheng UV-K5(8) is the most feature-rich
amateur transceiver at this price point on the market.
Multi-band. Cross-band. 200 channels.
Emergency weather reception. DTMF calling.
Third-party firmware support.

The professional radio tool for serious DRRM operators,
ham radio enthusiasts, and field communications officers.

Recommended by Jose Jekeri P. Taningco, LGOO VI —
28 years of frontline DRRM service under RA 10121.

━━━━━━━━━━━━━━━━━━━━━━━━
WHY THE UV-K5(8)?
━━━━━━━━━━━━━━━━━━━━━━━━

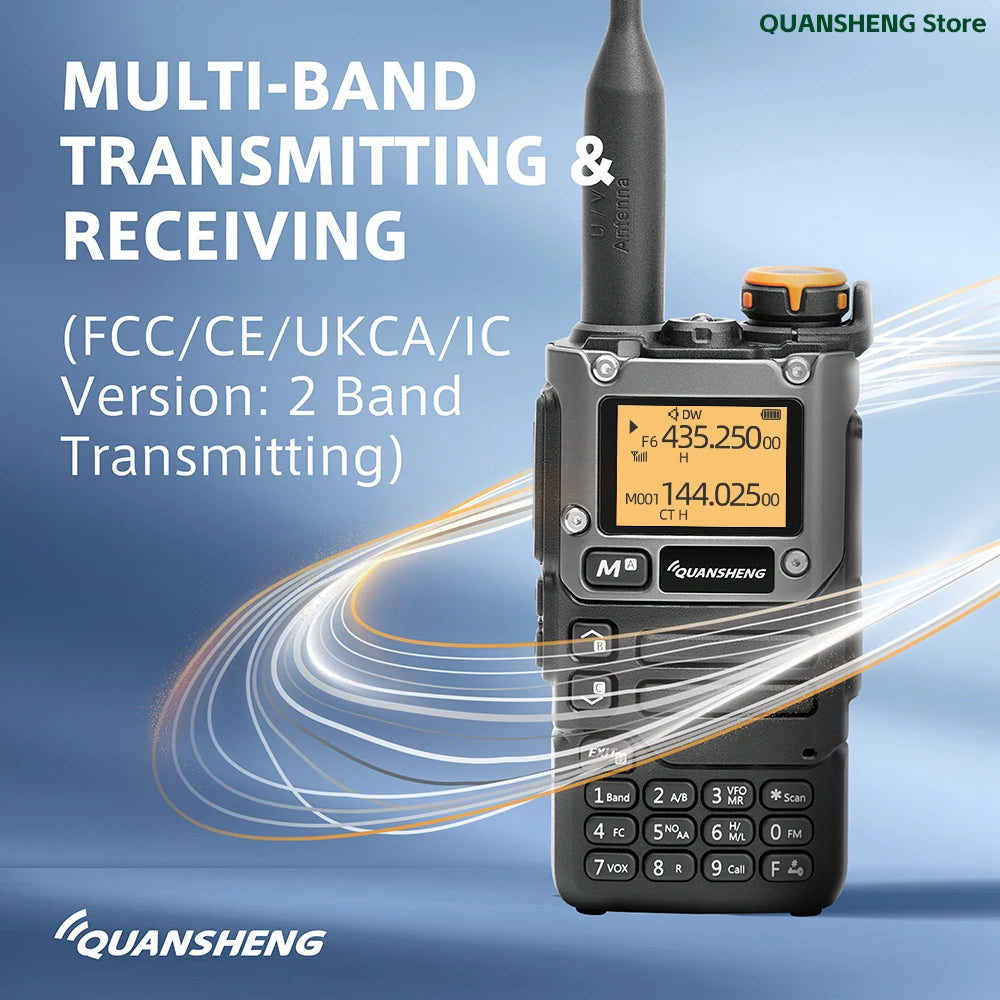

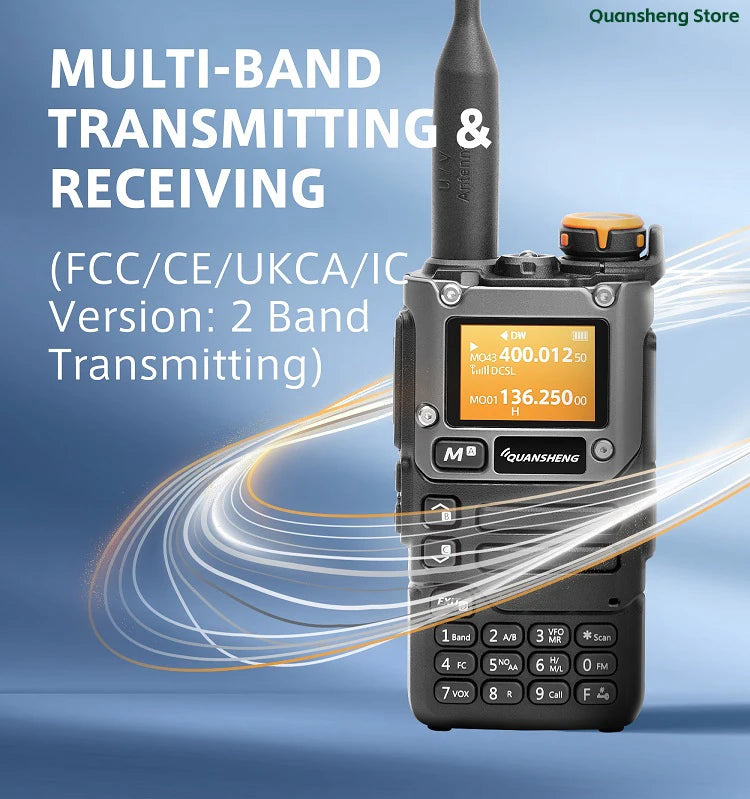

✔ MULTI-BAND TRANSMITTING & RECEIVING
  50–600MHz receiving range covers VHF, UHF,
  aviation band (AM), FM broadcast, and NOAA
  weather channels in a single device.
  No other radio at this price does this.

✔ 200 PROGRAMMABLE CHANNELS — Store all your
  DRRM, municipal, barangay, and interoperability
  frequencies in one device. Named channels
  for instant identification in the field.

✔ CROSS-BAND INTERCOM — Transmit on one band,
  receive on another simultaneously.
  Critical for interoperability between
  VHF and UHF DRRM radio networks.

✔ 10 EMERGENCY WEATHER CHANNELS (NOAA) —
  Receive live weather alerts and storm
  warnings directly on the radio.
  No phone signal needed.

✔ EMERGENCY ALERT FUNCTION — One-button
  emergency broadcast to all channels.
  Instant distress signal transmission.

✔ 10-GROUP SCRAMBLER — Encrypted communication.
  Multiple security layers to protect
  call privacy and operational security.

✔ DUAL-WATCH OPERATION — Monitor two channels
  simultaneously. Never miss a transmission
  on your primary or secondary frequency.

✔ VOX — Voice-activated transmission.
  Hands-free operation during field deployment,
  rescue operations, or tactical coordination.

✔ DTMF CALLING — Single call, group call,
  and all-call DTMF select calling.
  DTMF ANI identification included.

✔ REMOTE KILL / REVIVE — Remotely disable
  or reactivate a radio unit in the network.
  Critical for operational security.

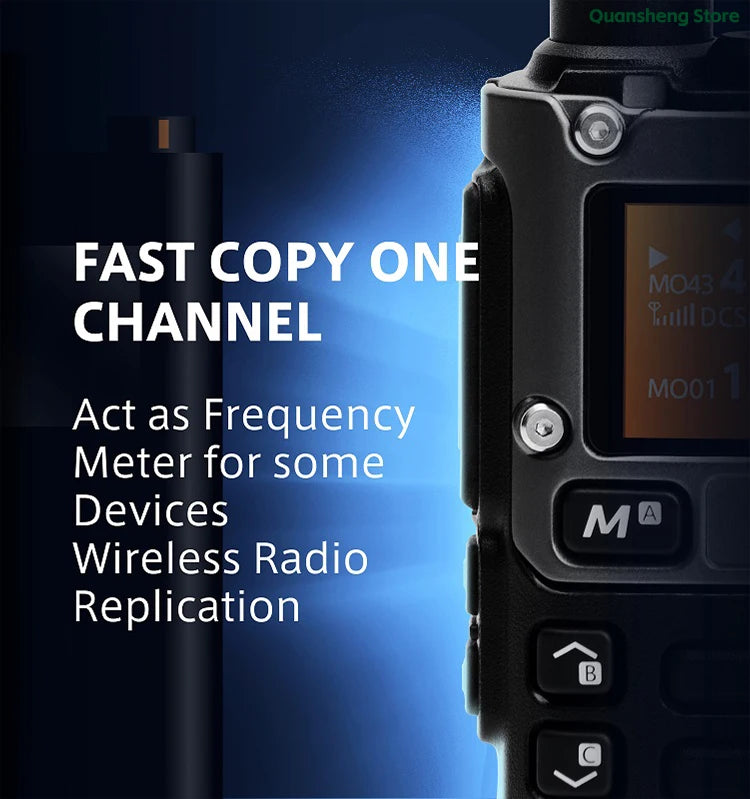

✔ WIRELESS RADIO REPLICATION — Copy channel
  configurations wirelessly between units.
  Fast deployment of frequency plans
  across your entire radio team.

✔ FREQUENCY METER FUNCTION — Acts as a
  frequency counter for two-way radios
  and compatible devices. F+4 to activate.

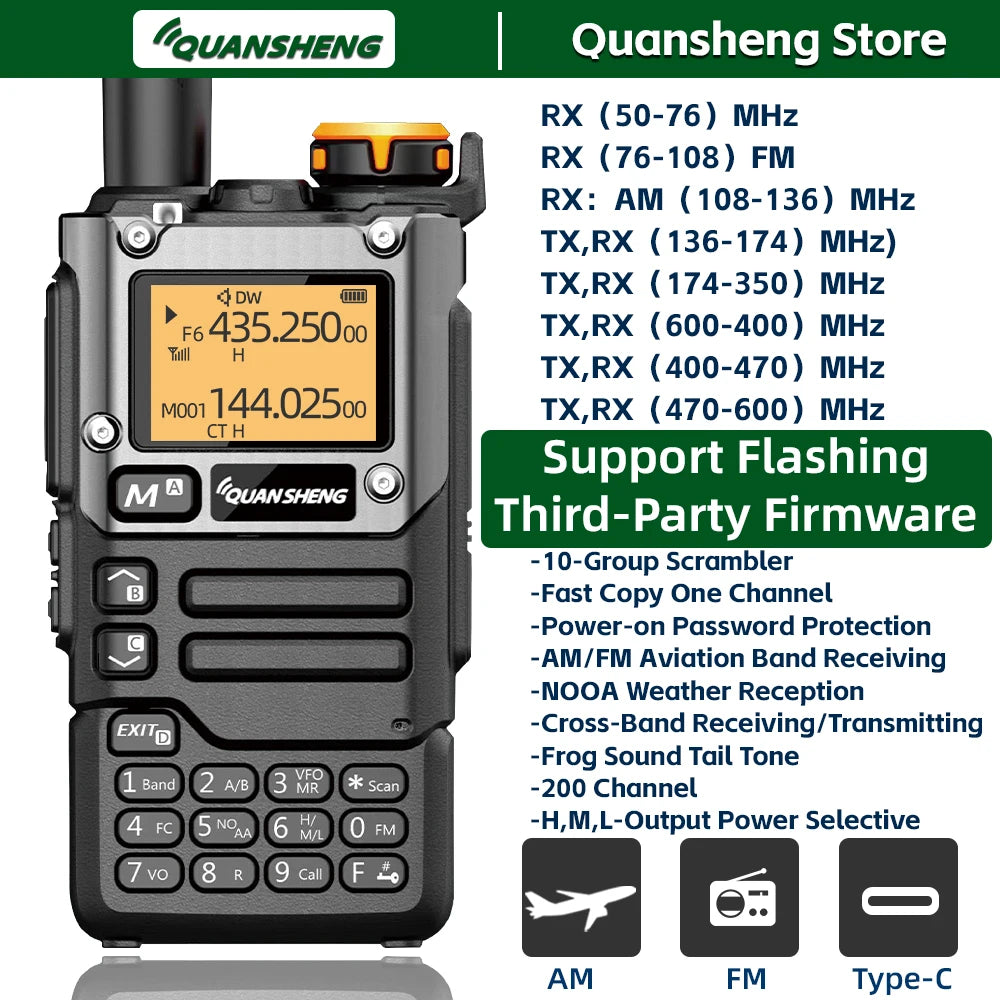

✔ THIRD-PARTY FIRMWARE SUPPORT — Fully
  compatible with community firmware upgrades
  via PC programming. Expands capabilities
  beyond factory defaults.

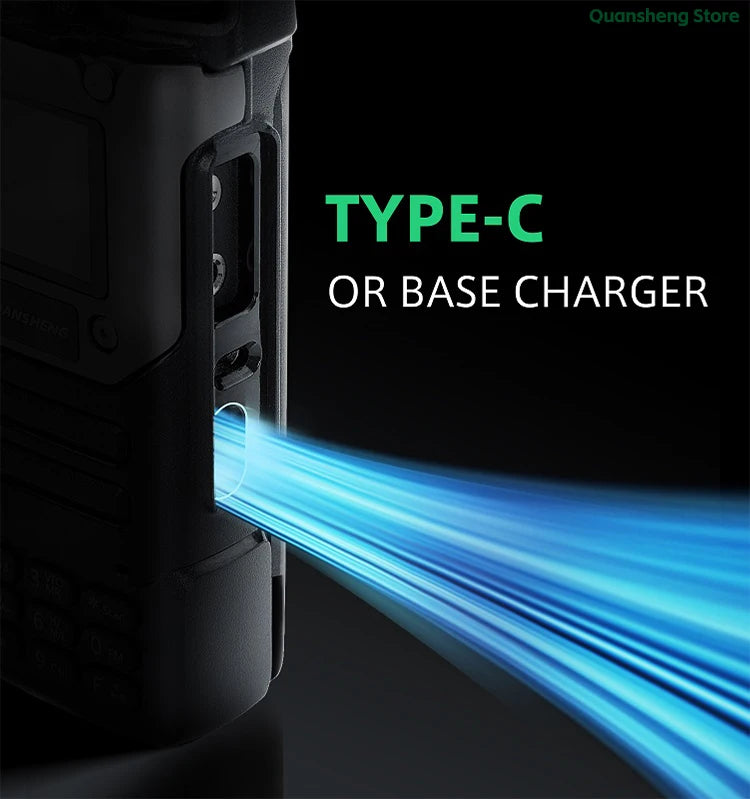

✔ TYPE-C + CHARGER BASE CHARGING — Modern
  USB-C charging plus traditional charging
  base. High capacity battery with long
  standby time for extended field operations.

✔ LARGE LCD DISPLAY — Clear, intuitive screen
  showing channel number, frequency name,
  and signal strength. Clean button layout
  for easy field operation.

✔ H / M / L POWER OUTPUT — High, Medium,
  Low transmit power selection. Extend
  battery life on Low during base operations.
  Maximum range on High in the field.

━━━━━━━━━━━━━━━━━━━━━━━━
COMPLETE FEATURE LIST
━━━━━━━━━━━━━━━━━━━━━━━━

200 Channel | Cross-Band Intercom
1750Hz Call Tone | Program On Site
Emergency Alert | Reverse Frequency Function
10-Group Scrambler | Multi-Scan
CTCSS/DCS | 10 Emergency Weather Channels
PC Programmable | Busy Channel Lock
VOX | Frequency & Channel Mode Shift
Time-Out Timer | Wireless Radio Replication
Large LCD Display | Voice Prompt
Reminding Switch | Remote Kill/Revive

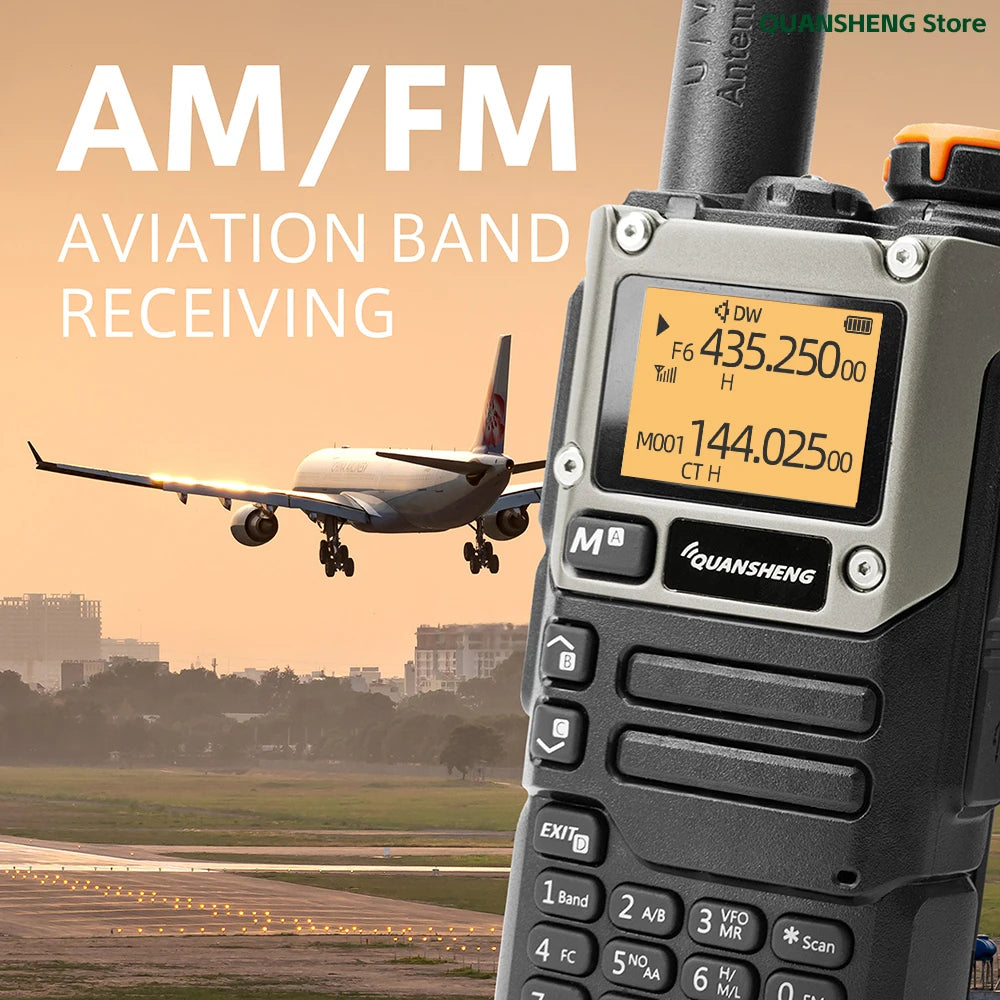

AM/FM Aviation Band Receiving | FM Radio
Offset Frequency Direction Set | Reset
Squelch Level Adjustable | Dual-Watch Operation
Offset Frequency Setting | Channel Scan & Add
Automatic Signaling Search | Multi-Step Frequency
One Key Call Channel | Keypad Lock
Backlight Auto Off | Jacklight
DTMF Calling | DTMF ANI
Wide/Narrow Bandwidth
Power-On Password Protection (PC Programmable)
Type-C & Charger Base Charging
DTMF Select Call (single/group/all call)
Repeater Forwarding Confirmation
Multi Display — Channel No./Frequency/Name
H/M/L Output Power Selective
Multi-Band Transmitting 50–600MHz Receiving
Receive/Transmit Code Setting Separately
High Capacity Battery | Long Standby Time
Frequency Meter Function

━━━━━━━━━━━━━━━━━━━━━━━━
GOVPROJEKERI RECOMMENDS
━━━━━━━━━━━━━━━━━━━━━━━━

"Radio communication is the backbone of any
serious DRRM operation. When I look at the
Quansheng UV-K5(8), I see a device that covers
everything a field DRRM officer needs —
multi-band receive, cross-band intercom,
200 programmable channels, NOAA weather reception,
emergency alert, and encrypted scrambler —
at a price that makes equipping an entire
barangay DRRM team financially viable.

For ham operators, DRRM practitioners,
and anyone building a serious communications
capability for disaster preparedness —
this is the radio to start with."

— Jose Jekeri P. Taningco, LGOO VI
   DILG Region VII | MCDRRM, Philippine Public Safety College
   RA 10121 Practitioner | Licensed Radio Operator

━━━━━━━━━━━━━━━━━━━━━━━━
WHO NEEDS THIS
━━━━━━━━━━━━━━━━━━━━━━━━

→ Barangay DRRM rapid response radio teams
→ LGU emergency communications officers
→ Municipal DRRM coordinators (MDRRMC)
→ Licensed ham radio operators (PARA members)
→ Search and rescue (SAR) field teams
→ Security and law enforcement units
→ Outdoor adventurers, mountaineers, and expeditions
→ Preppers and serious go-bag builders
→ Off-grid communities with no cell coverage

━━━━━━━━━━━━━━━━━━━━━━━━
GENERAL SPECIFICATIONS
━━━━━━━━━━━━━━━━━━━━━━━━

Channels: 200
FM Radio Channels: 20
NOAA Weather Channels: 10
Frequency Stability: ±1ppm
Modulation: FM 11KΦF3E (12.5KHz) / 16KΦF3E (25KHz)
Dimensions: 115 × 60 × 37.5mm
Weight: 234g
Operating Temperature: -20°C to +60°C
Antenna Impedance: 50Ω
Transmit Output Power: ≤5W
Emission Current: ≤1.5A
Charging: Type-C USB + Charging Base

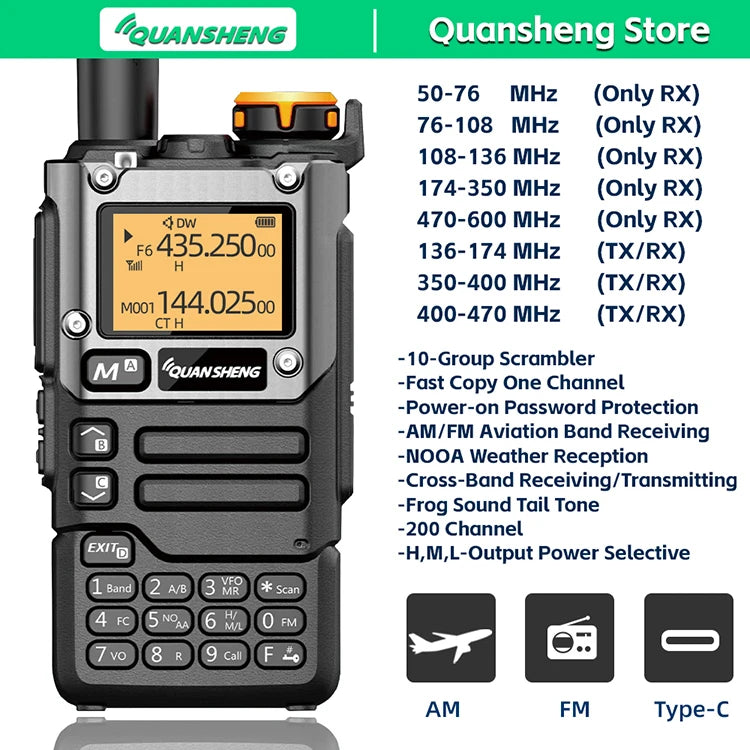

RECEIVING SENSITIVITY (FM 12dB SINAD):
F1 (50–76 MHz): -121dBm
F2 (108–135.9975 MHz): -121dBm
F3 (136–173.9975 MHz): -123dBm
F4 (174–349.9975 MHz): -123dBm
F5 (350–399.9975 MHz): -123dBm
F6 (400–469.9975 MHz): -123dBm
F7 (470–599.9975 MHz): -121dBm
WFM (76–108 MHz): -110dBm
Audio Output: ≥0.5W

━━━━━━━━━━━━━━━━━━━━━━━━

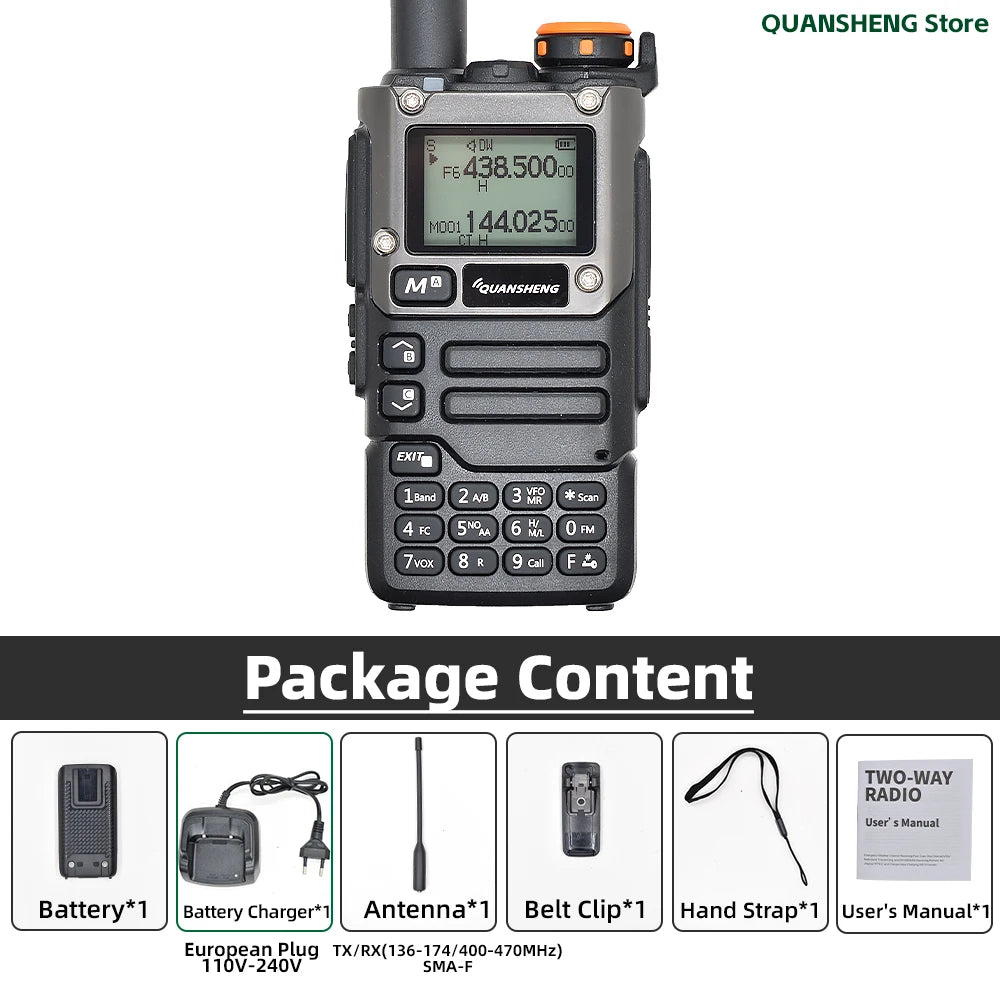

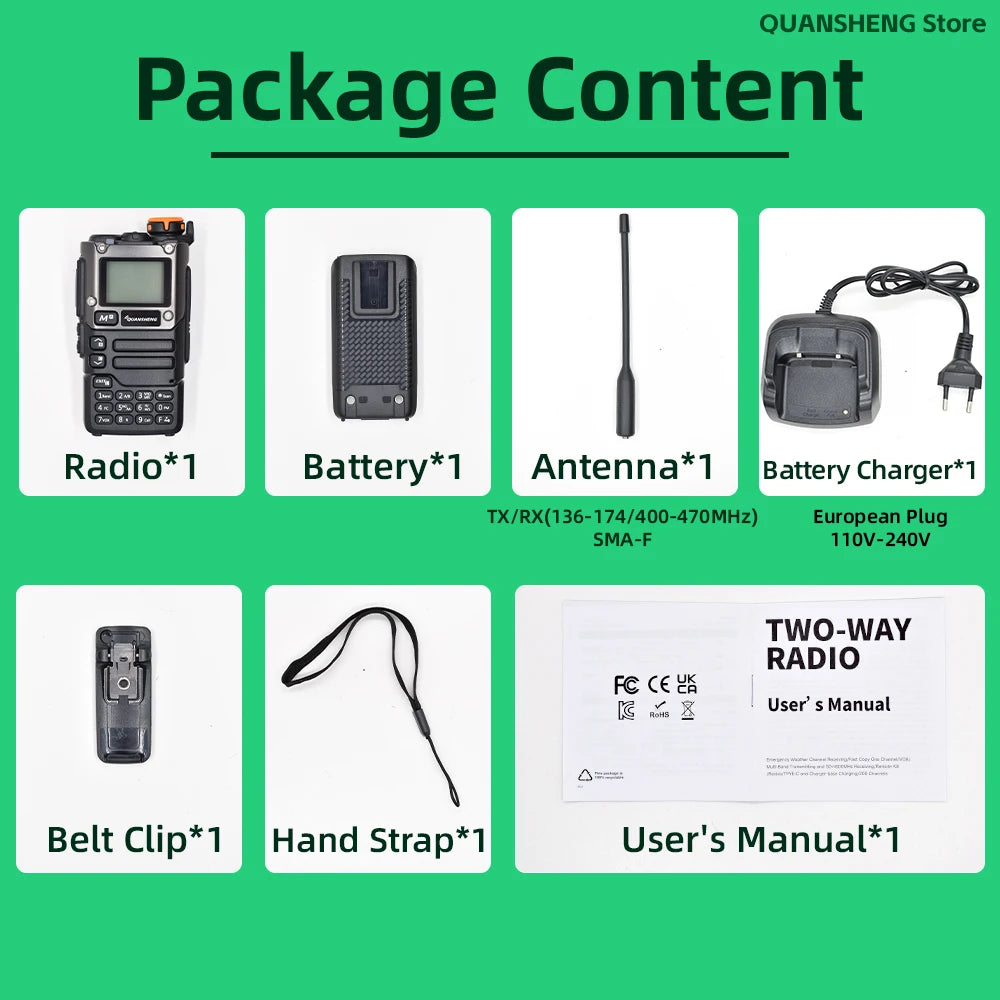

PACKAGE INCLUDES
━━━━━━━━━━━━━━━━━━━━━━━━

✔ 1 × Quansheng UV-K5(8) Radio Unit
✔ 1 × Battery Pack
✔ 1 × Antenna
✔ 1 × Belt Clip
✔ 1 × Hand Strap
✔ 1 × Charger
✔ 1 × User Manual

⚠ REGULATORY NOTE: In the Philippines, transmission
  on amateur radio frequencies requires a valid
  Amateur Radio Operator License (AROL) issued
  by the National Telecommunications Commission (NTC).
  Receiving-only operation does not require a license.
  Visit https://www.ntc.gov.ph for licensing information.

━━━━━━━━━━━━━━━━━━━━━━━━
